Reveal® 3-D Peanut

Reference : 700002635

CAD$330.75

Reveal® 3-D for Peanuts offers results in just 5 minutes and can be used in virtually any environment to screen environmental swabs and clean-in-place rinses.

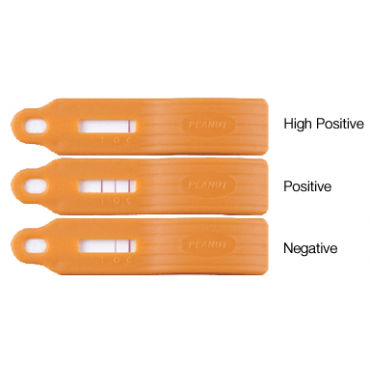

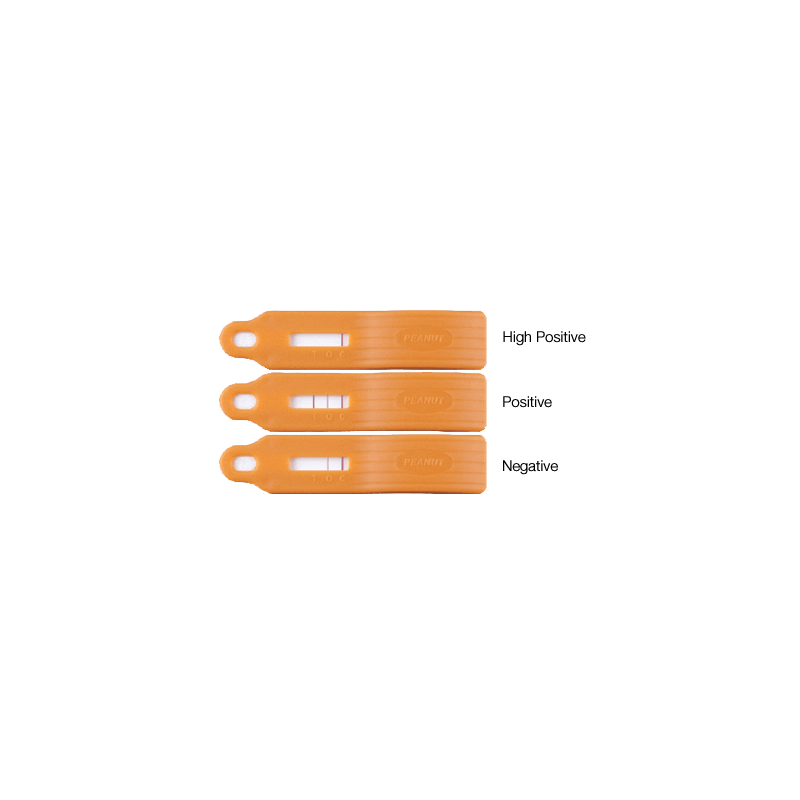

The Reveal 3-D line of food allergen tests kits is uniquely designed to guard against over saturation and false negative results, with results displayed in three visual lines on the lateral flow test strip.

A control line assures the test is working properly, and two other lines outline non detectable, low, and high levels of peanuts.

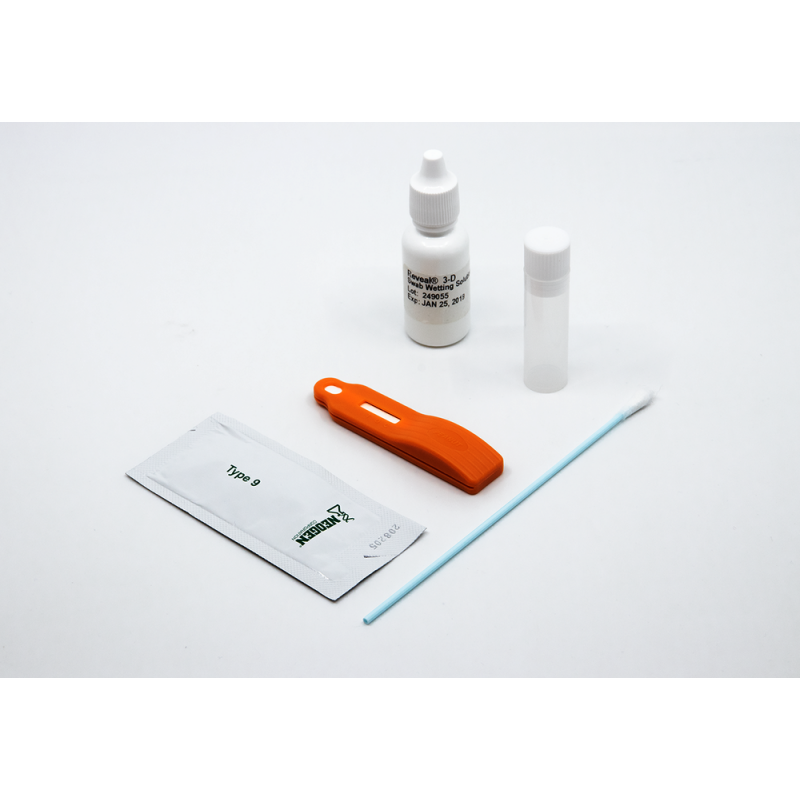

The Reveal 3-D Peanut test pack contains the following:

1 foil pouch, containing 10 orange Reveal 3-D Peanut Test devices
10 bottles or sachets containing Type 9 Extraction Buffer
10 sample tubes and caps
10 individually packaged, sterile swabs with break-off tips
1 bottle of swab wetting solution

The extraction of food samples requires the following:

3-D Food Buffer (Item Number 8504)
Graduated 50 mL polypropylene test tubes (Item Number 6288)

Assay Principles

The Reveal 3-D format is a single-step lateral flow immunochromatographic assay. The extract is wicked through a reagent zone, which contains antibodies specific for the target allergen conjugated to colored particles. If allergen is present, it will be captured by the conjugated antibodies.

The allergen antibody-particle complex then is wicked onto a membrane which contains a zone of antibody specific for the target allergen. This zone captures the complex allowing the particles to concentrate and form a visible line. If no target allergen is present, no line will form.

Specifications
Brand	Reveal®
Analyte	Peanut
Platform	Lateral Flow
Result Type	Qualitative
Approvals	AOAC-RI 111901
Limit of Detection	Screens samples at 1.3 ppm peanut protein (5 ppm total peanut). Screens samples at 3-4 µg/100 cm2 peanut.
Testing Time	5.00
Quantity per Package	10
Package Weight	0.50 lb

Reference 700002635

Brand: Neogen

Download

Reveal® 3-D Peanut insert

Reveal® 3-D Peanut procedure
